A Range of Special External Detectors for use with the Hagner Universal Photometers, the Hagner E4-X Digital Luxmeter or the Hagner MCA-1600 Multi-Channel Amplifier is available for various types of special measurements. Items currently available from the range are listed below but new detectors are being additionally developed.

For more information click here

Product Description Specifications
SD7 SD7-N, cosine corrected / SD7-ES, non cosine corr.
Spectral response: 700-1150 nm / 700-1150 nm
Order of absolute sensivity: 2 nA/W/m² / 3000 nA/W/m²
SD8-A UV-A detector
Spectral response: 315-385 nm
Order of absolute sensivity: 120 nA/W/m²
SD8-B UV-B detector
Spectral response: 260-380 nm
Order of absolute sensivity: 100 nA/W/m²
SD8-C UV-C detector
Spectral response: 253.7 nm
Order of absolute sensivity: 35 nA/W/m²
SD10 Hemi-spherical detetor
Spectral response: Vλ-filtered
Order of absolute sensivity: 315 pA/hs.lux
SD11 Hemi-cylindrical detector
Spectral response: Vλ-filtered
Order of absolute sensivity: 100 pA/hcyl.lux

SD7

SD7

SD7-N, cosine corrected / SD7-ES, non cosine corr.

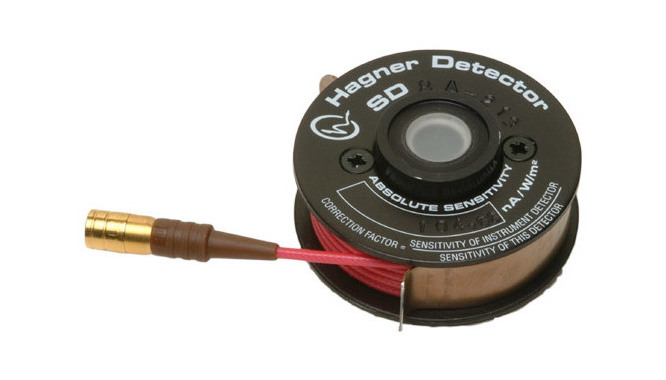

SD8-A

SD8-A

UV-A detector

SD8-B

SD8-B

UV-B detector

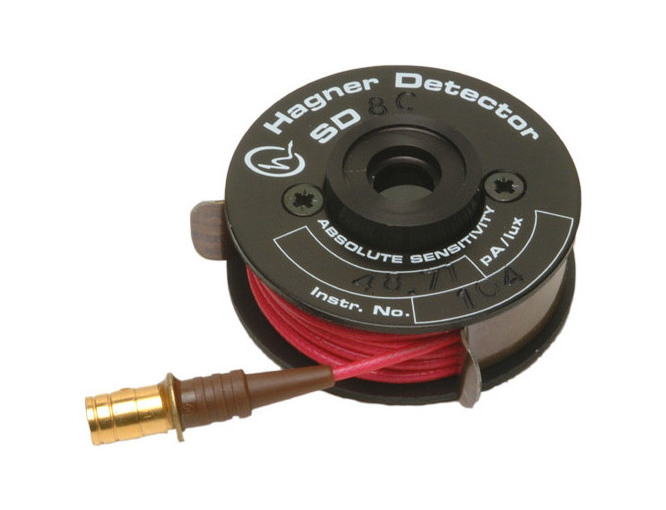

SD8-C

SD8-C

UV-C detector

SD10

SD10

Hemi-spherical detetor

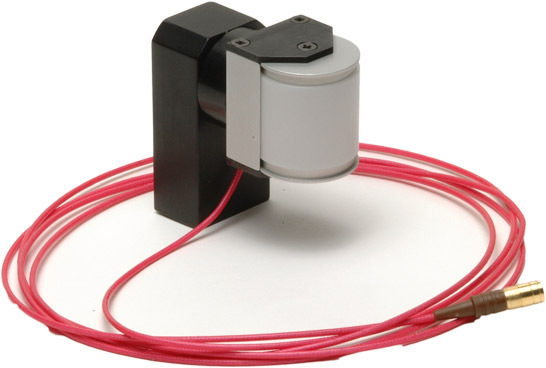

SD11

SD11

Hemi-cylindrical detector
