A Range of Special External Detectors for use with the Hagner Universal Photometers, the Hagner E4-X Digital Luxmeter or the Hagner MCA-1600 Multi-Channel Amplifier is available for various types of special measurements. Items currently available from the range are listed below but new detectors are being additionally developed.

For more information click here

Product Description Specifications
SD1 Standard detector for S1 & S2 Cosine corrected
Spectral response: Vλ-filtered
Order of absolute sensivity: 10 pA/lux
SD2 Standard detector for S4 Cosine corrected
Spectral response: Vλ-filtered
Order of absolute sensivity: 120 pA/lux
SD3 Extra sensitive Non cosine corrected
Spectral response: Vλ-filtered
Order of absolute sensivity: 1000 pA/lux
SD33 Standard detector for S3 Cosine corrected
Spectral response: Vλ-filtered
Order of absolute sensivity: 55 pA/lux
SD4 Non filtered and non cosine corrected
Spectral response: 375-1100 nm
SD6 Light guide detector 500 lenght fibre optic tube. Ø=1mm
Spectral response: Vλ-filtered
Order of absolute sensivity: 10 pA/cd/m²

SD1

SD1

Standard detector for S1 & S2 Cosine corrected

SD2

SD2

Standard detector for S4 Cosine corrected

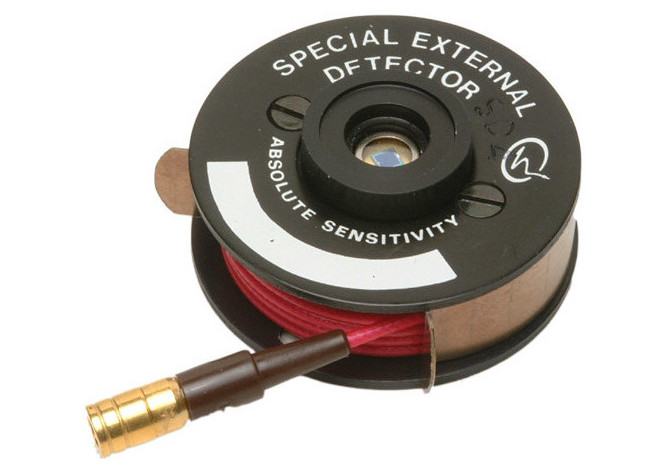

SD3

SD3

Extra sensitive Non cosine corrected

SD33

SD33

Standard detector for S3 Cosine corrected

SD4

SD4

Non filtered and non cosine corrected

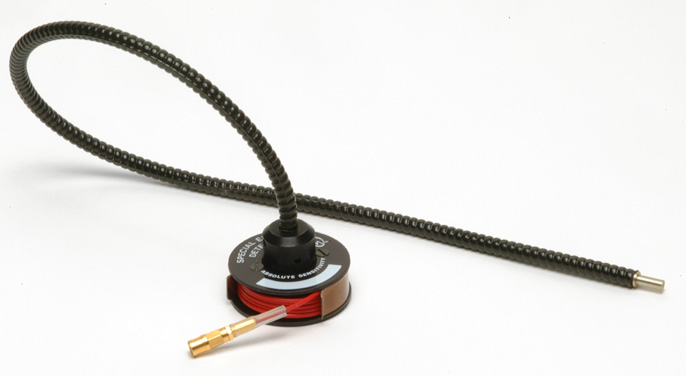

SD6

SD6

Light guide detector 500 lenght fibre optic tube. Ø=1mm
